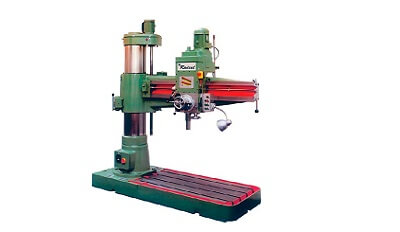

Radiaal boormachine Csepel BH50
Radiaal boormachine Csepel BH50
Price on request
| Slide Support Arm Length | 1600 |
| Capacity | |
| Drilling in steel [mm] | 50 |
| Boring in steel [mm] | 100 |
| Drilling in cast iron [mm] | 63 |
| Boring in cast iron [mm] | 120 |
| Tapping in steel [mm] | 50 |
| Tapping in cast iron [mm] | 60 |
| Stroke [mm] | 300 |
| Inner taper (standard) Morse no. | 4 |
| Inner taper (extra) Morse no. | 5 |
| Number of speeds | 12 |
| Range of speeds (standard) r.p.m. | 45-2000 |
| Range of speeds (variation I.) (1)r.p. m. | 22,5-1000 |
| Range of speeds (variation II.) (1) r. p.m. | 22,5-2000 |
| Number of feeds | 9 |
| Range of feeds (standard) [mm/min.] | 0,05-1,25 |
| Range of feeds (variation I.) [mm/ min.] | 0,1-2,50 |
| Maximum torque [Nm] | 300 |
| Maximum drill thrust [kN] | 14 |
| Electronic Motors | |
| Drilling motor [ kW] | 4 |
| Elevation motor [kW] | 1,5 |
| El. motor of the hydraulic locking [kW] | 0,6 |
| Coolant pump motor [kW] | 0,12 |
Product Description
| Slide Support Arm Length | 1600 |
| Capacity | |
| Drilling in steel [mm] | 50 |
| Boring in steel [mm] | 100 |
| Drilling in cast iron [mm] | 63 |
| Boring in cast iron [mm] | 120 |
| Tapping in steel [mm] | 50 |
| Tapping in cast iron [mm] | 60 |
| Stroke [mm] | 300 |
| Inner taper (standard) Morse no. | 4 |
| Inner taper (extra) Morse no. | 5 |
| Number of speeds | 12 |
| Range of speeds (standard) r.p.m. | 45-2000 |
| Range of speeds (variation I.) (1)r.p. m. | 22,5-1000 |
| Range of speeds (variation II.) (1) r. p.m. | 22,5-2000 |
| Number of feeds | 9 |
| Range of feeds (standard) [mm/min.] | 0,05-1,25 |
| Range of feeds (variation I.) [mm/ min.] | 0,1-2,50 |
| Maximum torque [Nm] | 300 |
| Maximum drill thrust [kN] | 14 |
| Electronic Motors | |
| Drilling motor [ kW] | 4 |
| Elevation motor [kW] | 1,5 |
| El. motor of the hydraulic locking [kW] | 0,6 |
| Coolant pump motor [kW] | 0,12 |
